Read Range																		KRxxx-E:Up to 10CM • KRxxx-M:Up to 5CM
Reading Time																		≤200ms
Input Port																		External LED Control, External Buzzer Control
Output Port																		KRxxx-E: 26bit Wiegand (Default), KRxxx-M: 34bit Wiegand (Default)
Power/Current																		DC 6-14V / Max.70mA
LED																		Red and Green LEDs
Operating Temperature																		-10°C to +65°C
Material																		ABS+PC with texture
Operating Humidity																		10% to 90% relative humidity • non-condensing
Beeper																		Yes
Index of Protection																		• KR500-E/M: IP65 • KR501-E/M: IP65 • KR502-E/M: IP64 • KR503-E/M: IP65
Standard Features																		125KHz RFID Card
Optional Features																		125KHz HID Prox Card, 13.56MHz MifareCard(S50 / S70), 13.56MHz HID Iclass Card
Communication																		RS485

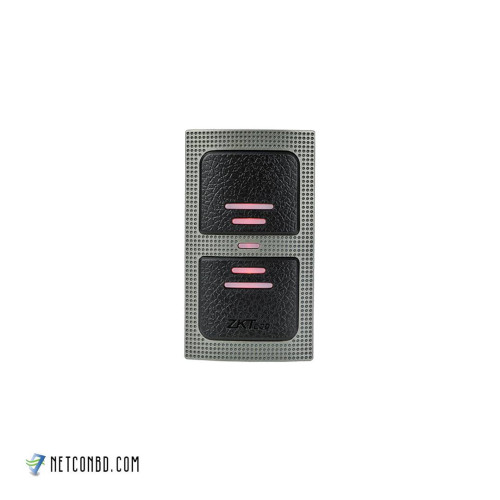

ZKTeco KR500E Access Control RFID Wiegand Exit Reader
