XPass 2 is an outdoor compact RFID reader based on Suprema's state-of-the-art RFID technology and multi-hardware platform. With the multi-form factor technology with mullion-mount, gangbox-type and gangbox keypad-type designs, XPass 2 can be installed in various environments. XPass 2 also supports dual-frequency (125kHz / 13.56MHz) RFID technology and can read the mobile cards using NFC and BLE. Packed in a strong IP67/IK08 box, it is dust & waterproof as well as vandal-resistant, suitable for tough environments and outdoor installation.
| Model Name | XP2-MDPB | XP2-GDPB | |
|---|---|---|---|
| RFID | RF Option | 125 kHz EM & 13.56 MHz MIFARE, MIFARE Plus, DESFire EV1/EV21), FeliCa | 125 kHz EM & 13.56 MHz MIFARE, MIFARE Plus,DESFire EV1/EV21), FeliCa |
| Mobile Card | NFC, BLE | NFC, BLE | |
| Protections | Ingress Protection | IP65, IP67 | IP65, IP67 |
| Vandal Proof | IK08 | IK08 | |
| Capacity(RFID) | Users(1:1) | 200,000 | 200,000 |
| Users(1:N) | 200,000 | 200,000 | |
| Text Log | 1,000,000 | 1,000,000 | |
| PIN | Not supported | Not supported | |
| HW | CPU | 1GHz | 1GHz |
| Memory | 4 GB Flash + 64 MB RAM | 4 GB Flash + 64 MB RAM | |
| LCD Type | Not supported | Not supported | |
| LED | Multiple colors | Multiple colors | |
| Sound | Multi-tone Buzzer | Multi-tone Buzzer | |
| Operating Temperature | -35°C ~ 65°C (-31°F ~ 149°F) | -35°C ~ 65°C (-31°F ~ 149°F) | |
| Storage Temperature | -40°C ~ 70°C (-40°F ~ 158°F) | -40°C ~ 70°C (-40°F ~ 158°F) | |
| Operating Humidity | 0% ~ 95%, non-condensing | 0% ~ 95%, non-condensing | |
| Storage Humidity | 0% ~ 95%, non-condensing | 0% ~ 95%, non-condensing | |
| Weight | Device: 144g, Bracket: 30g (Including washer and bolt) | Device: 220g, Bracket: 52g (Including washer and bolt) | |
| Dimension(WxHxD,mm) | 48 x 145 x 27 | 80 x 130 x 25 | |
| Tamper | Supported | Supported | |
| Certificates | CE, FCC, KC, RoHS, REACH, WEEE, SIG | CE, FCC, KC, RoHS, REACH, WEEE, SIG | |
| Interface | Wi-Fi | Not supported | Not supported |
| Ethernet | 10/100 Mbps, auto MDI/MDI-X | 10/100 Mbps, auto MDI/MDI-X | |
| RS-485 | 1ch Master or Slave (Selectable) | 1ch Master or Slave (Selectable) | |
| Wiegand | 1ch Input or Output (Selectable) | 1ch Input or Output (Selectable) | |
| TTL Input | 2ch Input | 2ch Input | |
| Relay | 1 Relay | 1 Relay | |
| USB | Not supported | Not supported | |
| SD Card | Not supported | Not supported | |
| PoE | Supported (IEEE 802.3af compliant) | Supported (IEEE 802.3af compliant) | |
| Intercom | Not supported | Not supported | |
| Electrical | Power | DC 12 V / DC 24 V | DC 12 V / DC 24 V |

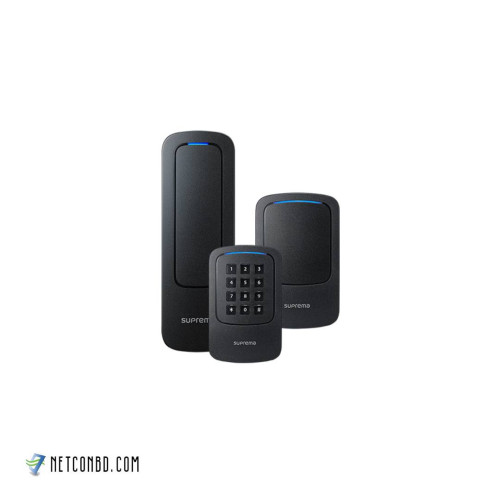

Suprema Xpass 2 outdoor compact RFID reader
- Brand: Suprema
- Product Code: x pass 2
- Availability: In Stock
-
৳0
