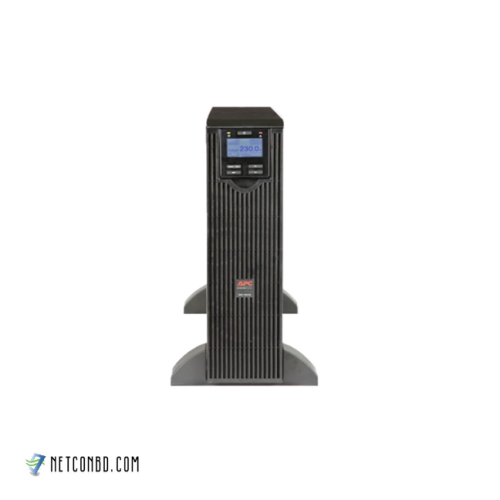

Smart-UPS™ On-line provides high-density, true, double conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. It’s capable of supporting loads from 1 to 10 kVA in a rack/tower convertible form. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-line can be configured with matching battery packs to comply with aggressive runtime demands.

Country of Origin	USA
Topology	Double Conversion Online
Capacity	10000VA, Output Power : 8000 W
Input Voltage	230V (Nominal)
Output Voltage	230 V (Configurable for 220 : 230 or 240 nominal output voltage) (Nominal), Distortion: Less than 3%, Regulation: +/-1% static, 5% dynami
Frequency	Input : 45 - 65 Hz (auto sensing), Output: 47 - 63 Hz
Input Connection	(1) Hard Wire 3-wire (H N + G)
Output Connection	(1) Hard Wire 3-wire (H N + G)
Voltage Range	100 - 280V (DC: 240VDC)
Input/Output Current (Nominal)	650
Efficiency	90% at full load
Product Size	No internal battery - uses external battery system
Backup Time	Depends On Battery Bank
Interface	DB-9 RS-232,SmartSlot
Control Panel	LCD Display
Power Factor	Input : >.95
Crest Factor	3:01
Bypass	Internal Bypass (Automatic)
Noise Level	< 55 dB
Approvals	EN 60950,EN/IEC 62040-2
Warranty	1 year
