Noise Level	60 dB(A), at a distance of 1000 mm from the surface of the device
Display
Screen Size	21.5", one screen
Camera
Camera Resolution	1920×1080
Battery And Power
Power Supply	AC 110V to 230V (-15% to +10%), 50Hz/60Hz (±3Hz);
Power Consumption	Max 0.6 kW
Others
Other Features	Screen resolution: 1920×1080@60Hz Wire resolution: 36 AWG standard, 38 AWG typical Penetration (on steel): 6 mm standard, 10 mm typical Prohibited things: 7 categories with 15 types Login Method: Password Video storage: not less than 30 days Video compression: H.265/H.264/MJPEG Film safety: ASA/ISO1600 standard External Dose Level: < 1.0 µSv/h (at a distance of 100 mm from the surface of the device) Play image: Instantly Ability to store images: more than 100000
Physical Specification
Humidity	-20°C to 60°C / 0% to 95% (non-condensing)
Load Capacity	165 kg
Height	600 mm
Operating Temperature	from 5 °C to 40 °C / from 10% to 95% (non-condensing)
Dimension	Tunnel: 650 mm(W) × 500 mm(H) Dimensions of the device: 2011 mm(L) × 887 mm(W) × 1300 mm(H)
Weight	Net: about 500 kg
Technical Info
Speed	0.2 m/s
Function	Standard: Time/date, baggage counting, user management, log management, X-ray power-on time, power-on self-test, advanced scanning, system information management, built-in system diagnostics, standby mode, learning, HCP, organic material alarm, non-intrusion alarm, explosive detection, etc. Image enhancement: Color/Black & White (C/B&W), Organic Removal (ORG-), Inorganic Removal (INORG-), Negative, High/Low Penetration (H/L), Absorption Enhancement (ABS+), Absorption Reduction (ABS-), Super Enhancement (SEN), Edge Enhancement and Suspect Material Enhancement (Z789), 64X Enlargement and 3X Image Enlargement, etc.

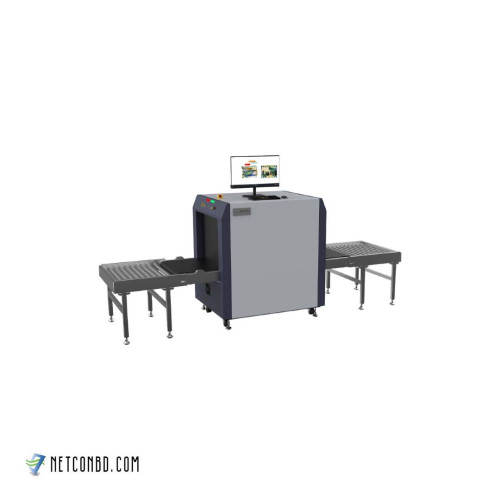

Hikvision ISD-SG6550SA-2CL X-ray Intelligent Security Inspection Scanner

Brand: HIKVISION
Product Code: ISD-SG6550SA-2CL
Availability: In Stock
