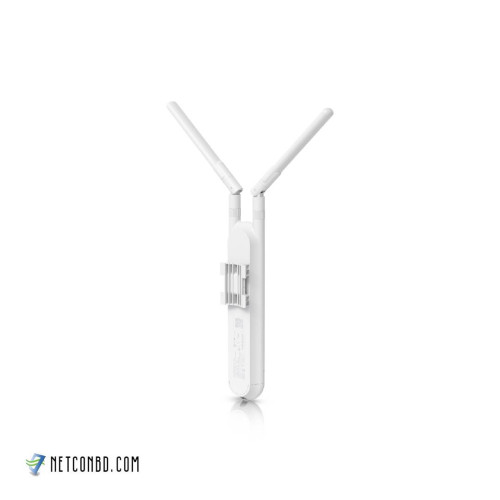

The UniFi UAP-AC-M is a high-performance, dual-band 802.11ac Mesh Access Point, designed for indoor and outdoor Wi-Fi coverage. With 2×2 MIMO technology and speeds up to 1167 Mbps, this compact yet powerful access point ensures seamless connectivity across homes, offices, retail spaces, and large outdoor areas. It features two RP-SMA connectors for flexible antenna options, allowing you to customize coverage with either included omni-directional antennas or optional dual-band antennas.

Key Features:

• High-Speed Mesh Wi-Fi – 802.11ac dual-band with speeds up to 1167 Mbps (2.4 GHz: 300 Mbps | 5 GHz: 867 Mbps)
• Powerful 2×2 MIMO Technology – Delivers fast, stable, and interference-free Wi-Fi
• Flexible Deployment – Mount on walls, poles, or fast-mount brackets (all included)
• Outdoor-Ready & Durable – Designed to withstand harsh weather conditions (-30°C to 70°C)
• Customizable Antenna Options – Features RP-SMA connectors for external antenna support
• Enterprise-Grade Security – Supports WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Mesh Networking – Expands coverage effortlessly with UniFi Mesh Technology

Technical Specifications:

• Networking Interface: 1× Gigabit Ethernet (GbE) port
• Wi-Fi Standard: 802.11a/b/g/n/ac
• Max. Clients: 100+ devices
• Coverage Area: 140 m² (1,500 ft²)
• Power Supply: 24V Passive PoE (Gigabit PoE adapter included)
• Power Consumption: 8.5W Max
• Antenna Gain: 2.4 GHz: 3 dBi | 5 GHz: 4 dBi
• Operating Temperature: -30°C to 70°C (-22°F to 158°F)
• Certifications: CE, FCC, IC, UKCA

What’s in the Box?

• 1x UniFi UAP-AC-M Access Point
• 2x Dual-Band Omni Antennas
• 1x Gigabit PoE Adapter (24V, 0.5A)
• 1x Mounting Kit (Wall/Pole/Fast-Mount)
